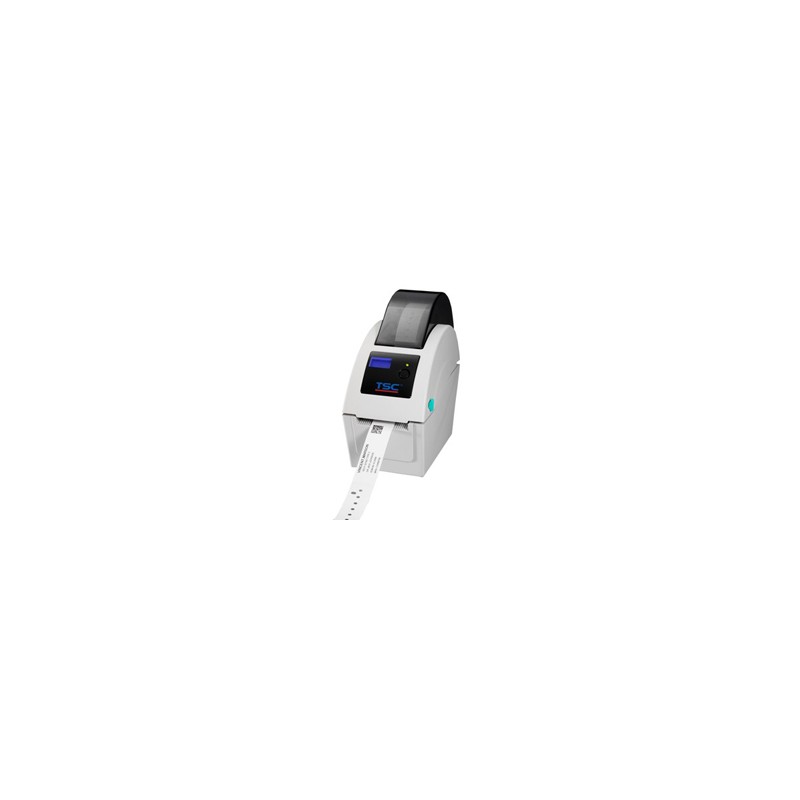

TSC TDP324

Model

Built with TSC durability, reliability and commitment to innovation, the 2-inch-format TDP-324 series direct thermal printer features a compact design and high performance engine that make it ideal for many healthcare, retail and asset tagging labeling applications.

Connectivity :

Option :

Data sheet
Download

Print Technology	Direct Thermal
Weight	1.2 kg (2.65 lbs)
Warranty	1 year or 25km
Resolution	12 dots/mm (300 DPI)
Connectivity	USB, USB + Ethernet, USB + USB hots + Ethernet + Serial, USB + Bluetooth BT Mfi
Media Characteristics	width: 15 ~ 60 mm (0.59“ ~ 2.36“) thickness: 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) core diameter: 25.4 ~ 38 mm (1” ~ 1.5”) Label length :10 ~ 2,286 mm (0.39“ ~ 90“) 10 ~ 1,016 mm (0.39“ ~ 40“)
Maximum Print Speed	102 mm (4”)/second
Maximum Print Width	48 mm (1.89“ )
