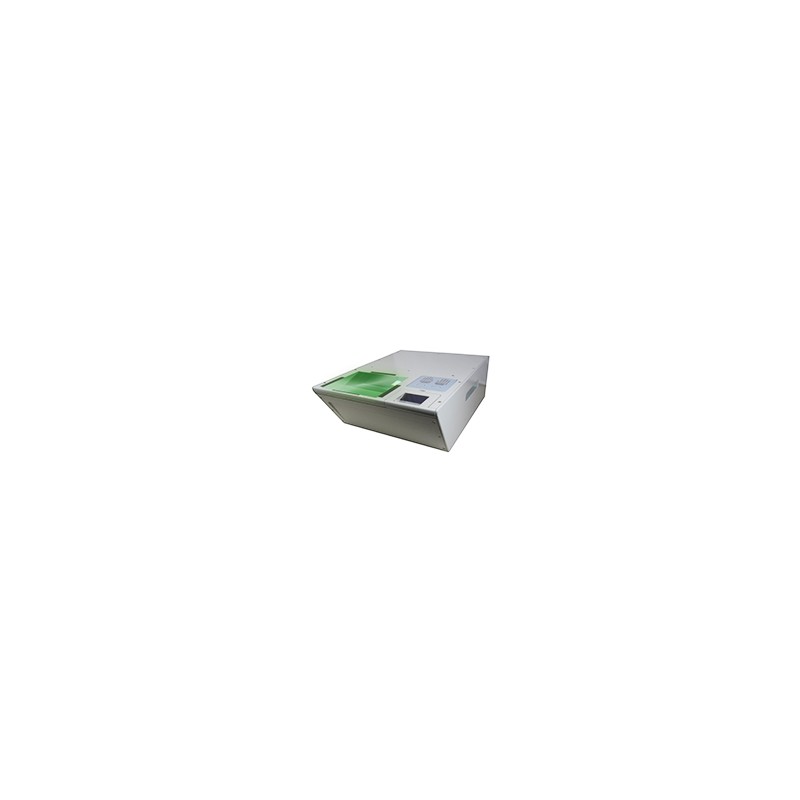

CS1000P - Palm Print/Tenprint Livescan System
CS1000P
The CS1000p is a 1,000 and 500 ppi FBI-certified livescan device that captures all rolled fingers, flats, upper, lower and writer's palms during the booking process.
| Dimensions | 13 x 1731 x 5.7" (330 x 434 x 145 mm) |
| Weight | 28.9lbs (13.1kg) |
| Resolution | 500 or 1000 ppi |
| Operating Environment | Operating : 10 to 35 C - Humidity : 10-80% relative humidity, non-condensing |
| Requiered configurations | Windows XP or Higher - 2GB RAM or higher - 80GB Hard drive or higher - USB 2.0 |
| Power | DC 12V, 4A |
| Certifications | FBI Appendix F - FCC - CE |
| Palm Print Image Size | Up to 5104 x 5000 pixels |
| Flat Image Size | Up to 3200 x 3000 pixels for slaps |
| Rolled Image Size | Up to 1600 x 1500 pixels for rolled fingers |
- Forensic-quality image capture for flat, rolled, and palm print impressions
- Real-time image preview on-screen for improved quality control
- Image quality and sequence check by comparing rolled and flat impressions
- Built-in event logging and recovery mechanisms
- Preformatted data fields for ease of demographic data entry
- Fully compliant with ANSI/NIST, FBI, and international standards
- Intuitive user interface, including progammable function keys
- Remote diagnostics and maintenance available
- Optional foot pedal for hands-free operation
- Optional signature and mugshot capture component
