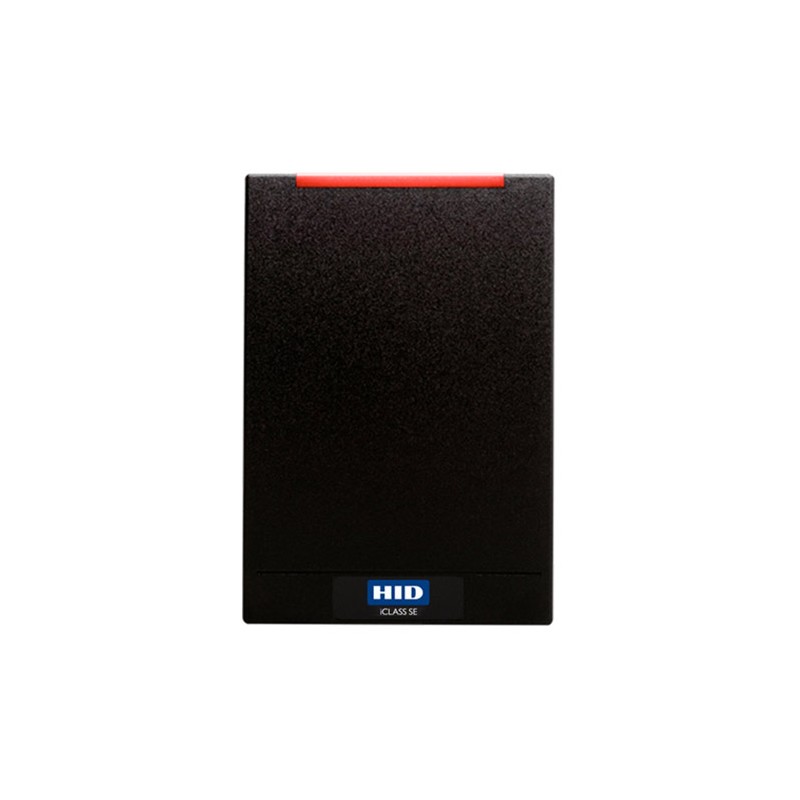

HID - iCLASS SE - R40

Model 920N

HID Global's iClASS SE platform goes beyond the traditional smart card model to offer a secure, standards-based and flexible platform that has become the new benchmark for highly adaptable, interoperable and secure access control solutions

Data sheet

Dimensions	3.3" x 4.8" x 1.0" 8.4 cm x 12.2 cm x 2.4 cm
Warranty	Lifetime Limited
Operating Environment	Fonctionnement: -35º à 65º C (-31º à 150º F) Entreposage : -55º à 85ºC (-67º à 185ºF)
Humidity	Fonctionnement : 5 to 95% RH non-condensing
Typical Read Range (inches) - ID-1 Credentials (Cards) – SIO Data Model	iCLASS Seos: 3.2" (8 cm) iCLASS: 5.2" (13 cm) MIFARE Classic: 3.9" (10 cm) MIFARE DESFire EV1: 3.2" (8 cm)
Typical Read Range (inches) - Tags/Fobs – SIO data Model	iCLASS: 2.8" (7 cm) MIFARE Classic: 2.0" (5 cm)
Environmental Rating	Intérieur, Extérieur IP55; IP65 installation avec un joint
Certifications	UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU)
Cryto Processor Hardware Common Criteria Rating	EAL +5
Communications	Wiegand, Clock-and-data, Open Supervised Device Protocol (OSDP) via RS485
Transmit frequency	13.56 MHz
