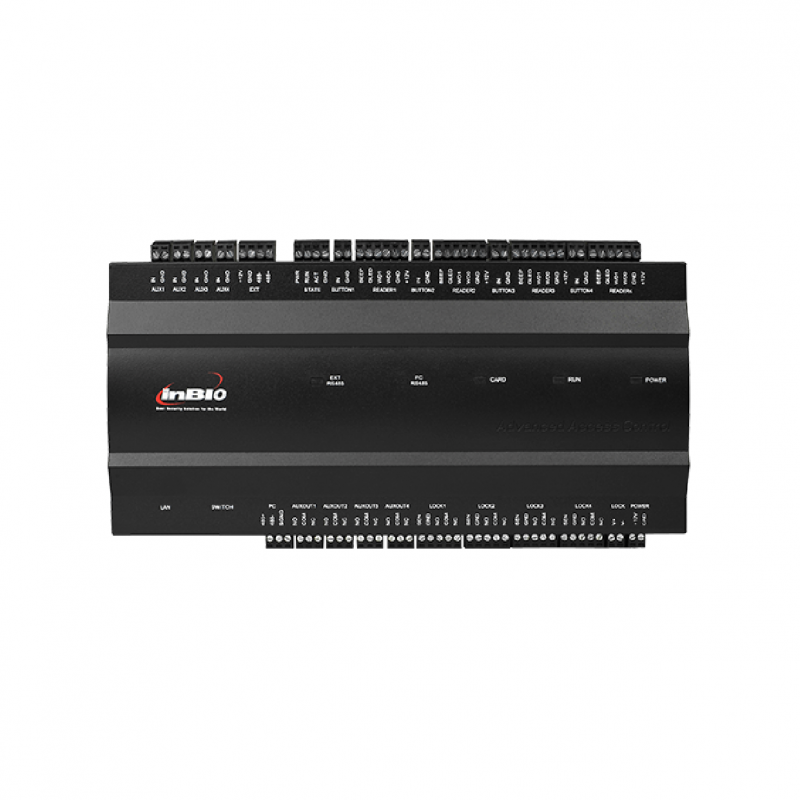

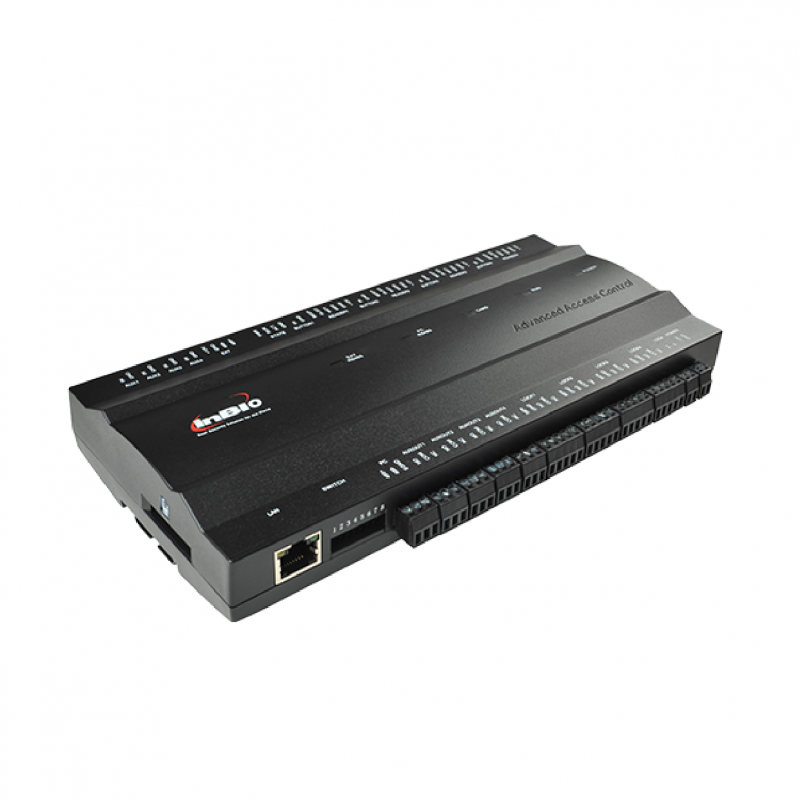

InBio 460 View larger

InBio 260

inbio260ZKT

InBio carries out the matching of fingerprints on the panel, itself. The FR Series of readers transmit fingerprint templates to InBio via RS-485 for fast and accurate matching with templates stored in a data-base. InBio controllers install easily on your network and support both TCP/IP and RS-485 communication.

Dimensions 9 3/4" x 7 3/4" x 3"
Weight 7.8lbs (3.55kg)
Operating Environment Operating : 32° to 113° F (0° to 45° C)
Humidity Operating : 20 to 80%
General 2 Doors
Capacity Card Users : 30.000 ; Fingerprint Users : 3.000
Communications RS485 ; TCP/IP
Number of Inputs 6( 2 Exit Device, 2 Door Status, 2 AUX)
Number of Outputs 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)
Number of Readers Supported 8(4 RS-485 Reader, 4 26-bit wiegand reader)
