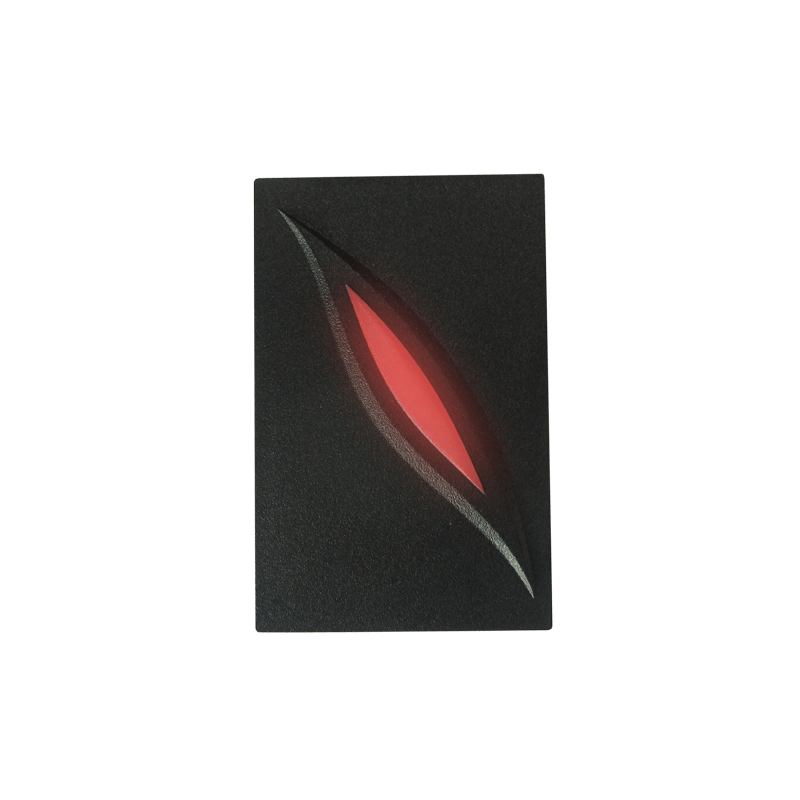

ZKTeco - KR100-M

Model KR100MZKT

The KR Series is the main accessories line of external wiegand readers for all our access control devices. With an elegant and robust design, they are easy to connect and install, and offer the possibility to control one door from both sides.

Data sheet

Dimensions	11.6 x 1.7 x 7.5 cm
Weight	120g
Operating Environment	Operating : -20 to 65 °C ( -10 to 70°C)
Humidity	10% to 90% relative humidity, non-condensing
Read Range	Up to 5CM
Reading Time	≤ 300ms
Input port	2ea (external LED control, external buzzer control)
Output Port	RS485
Index of Protection	IP65
