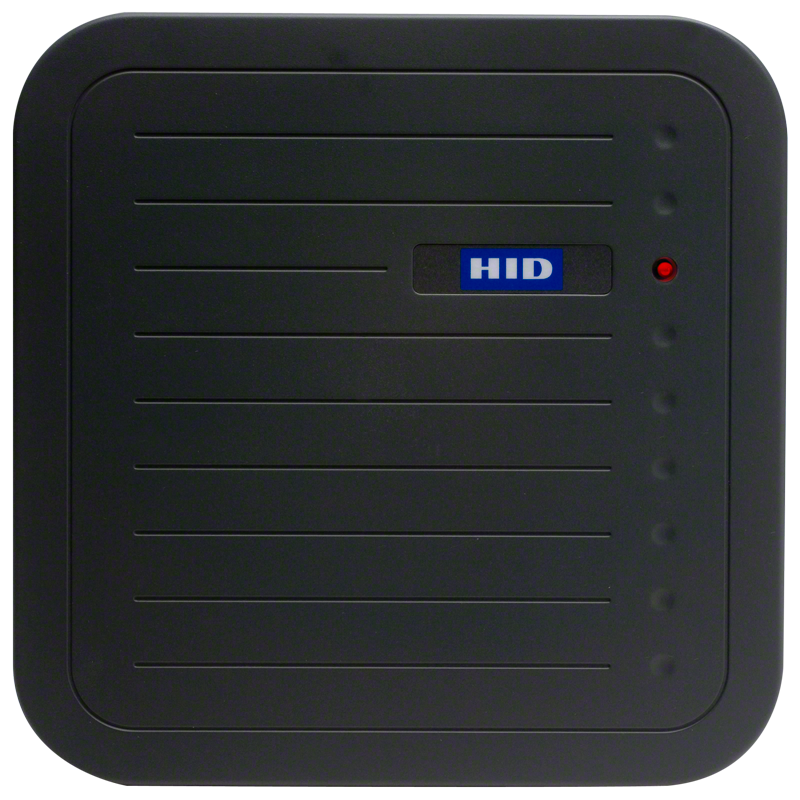

HID - MaxiProx

Model 5375A

HID's MaxiProx® Reader is ideal for installations incorporating parking control and long read range applications. The MaxiProx reader packages all the electronics in one rugged, attractive and easy-to-install housing.

Data sheet

Dimensions	30.5 x 30.5 x 2.5 cm (12.0 x 12.0 x 1.0")
Weight	1440g (50.8 oz)
Warranty	Lifetime
Power	12 VDC or 24 VDC
Read Range	Up to 61 cm (24" )
Output Port	Wiegand, Clock & Data, RS-232, RS-422 or RS-485
Operating Voltage Range	200/700mA @ 12 VDC or 260mA/1.2A @ 24 VDC
Tamper	Switch
