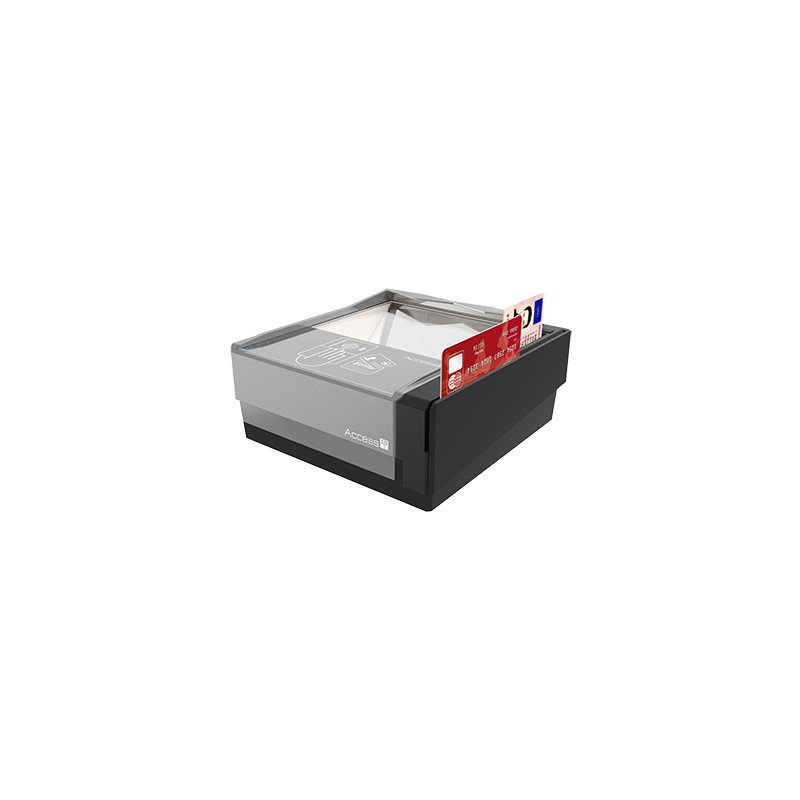

ACCESS IS ATOM
The ATOM® Document Reader is a state-of-the-art, multiillumination eMRTD reader. Representing a major leap forward in aesthetic design with dramatically improved performance, this device sets the ID document reader standard for years to come!
| Dimensions | 143 x 171 x 65mm |
| Weight | 750g excl cable/PSU |
| Warranty | 1 Year |
| Resolution | 500 dpi, visible/white, IR, UV LED’s |
| Connectivity | USB 3.0 (Compatible USB 2.0) |
| System Integration | SDK (ARDS) |
| Regulatory | FCC Part 15C Class B ; CE EMC Class B, CE Low Voltage Directive; IEC60825- 1, LED Safety: Class 1 - BS EN 60950-1:2006+A2:2013 |
| Operating Environment | Temperature: Operating 0 OC to 50 OC Storage: 0 OC to 60 OC Humidity: 0 to 95% non-condensing |
| Features | Complete access to OCR-B data and images captured via Software Development Kit (SDK), BMP, TIFF, PNG ou JPEG formats - Auto-triggering of document capture. |
| Documents Processing | MRZ readings : MRP, MRV ICAO 9303 -Interoperability: ICAO DOC 9303,frequency 13.56 MHz, ISO 14443 type A & B auto-detecting, (Mifare ultralight, 1K, 4K cards) |
