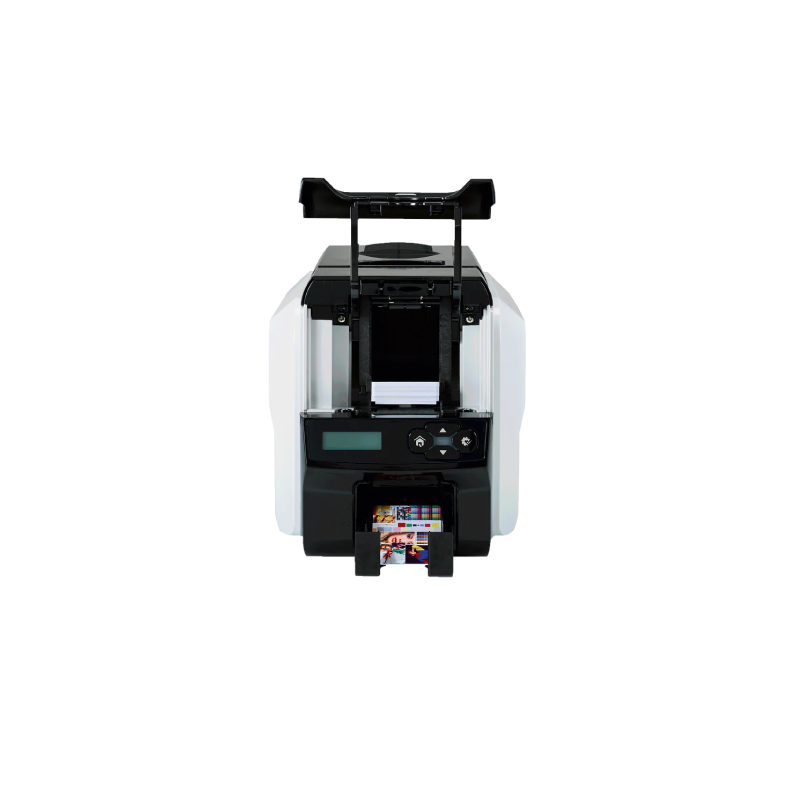

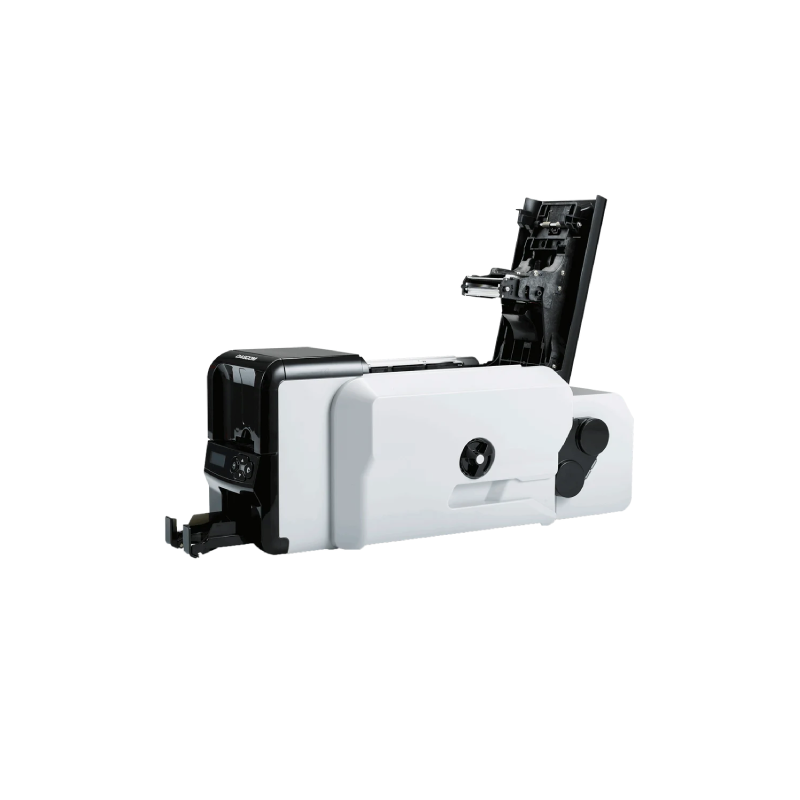

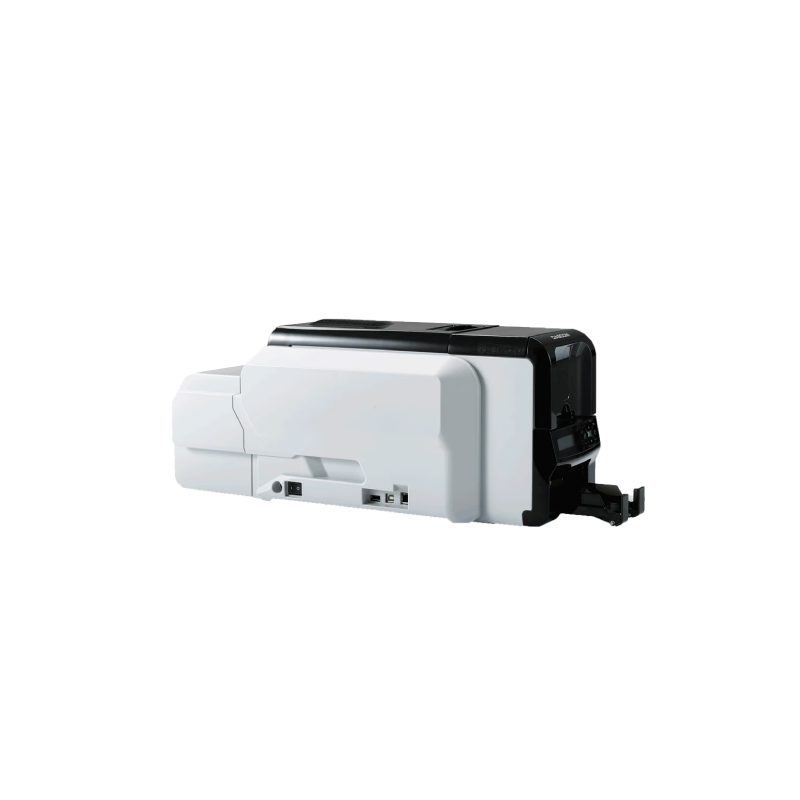

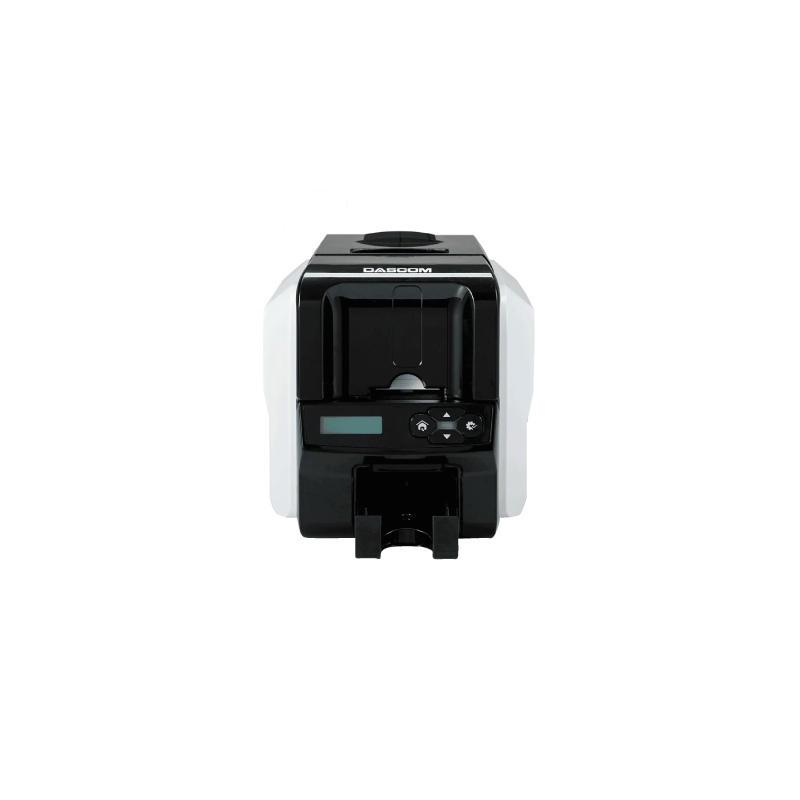

Dascom DC-3300

Model

With direct thermal printing technology, printing is done directly on the card using dye sublimation ink ribbons.

This type of printing provides a high resolution image and is ideal for applications where photo or portrait quality is important.

Print :

Encoding :

Data sheet
Download

Print Technology	Direct Thermal
Dimensions	En recto : 216 x 450 x 234 mm (L x P x H) - En recto/verso : 216 x 550 x 234 mm (L x P x H)
Weight	7 kg
Resolution	Jusqu'à 300 x 1200 ppp
Input Hopper Card Capacity	100
Output Hopper Card Capacity	30
Connectivity	USB (2.0) et Ethernet
Cards Size	CR-80
Cards Thickness	0,26 - 1,25 mm (10 - 50 mil)
Maximum Print Speed	Simple face : 1.000 cartes/heure (monochrome K) & 220 cartes/heure (YMCKO) - Double face : 165 cartes/heure
Power	100 à 240 V AC 50/60 Hz
