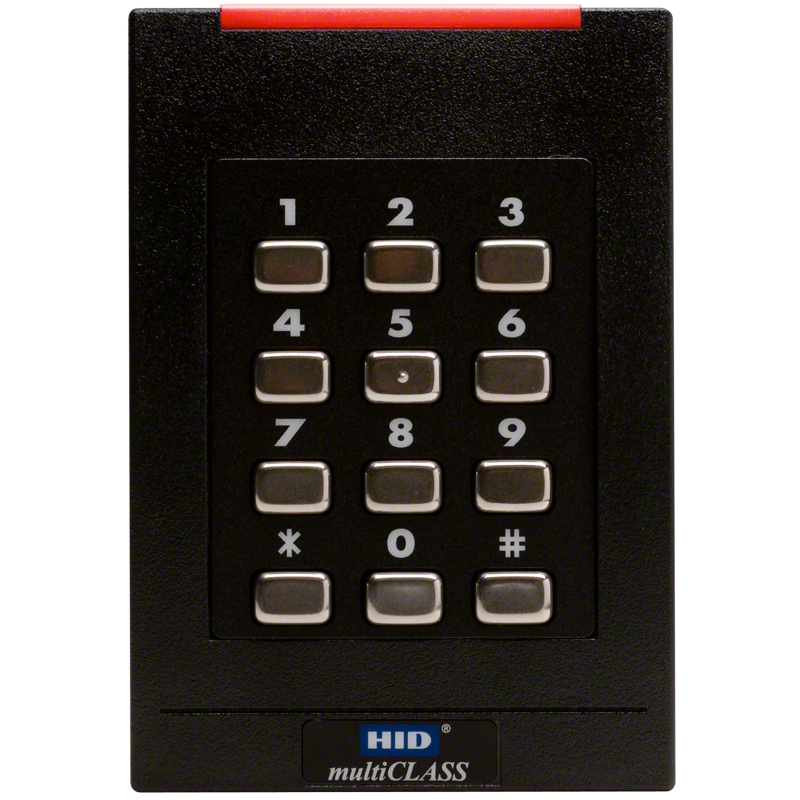

HID - MultiClass SE RPK40
921P
HID Global’s iCLASS SE access control platform goes beyond the traditional smart card model to offer a secure, standards-based and flexible platform that has become the new benchmark for highly adaptable, interoperable and secure access control solutions
| Dimensions | 3.3" x 4.8" x 1.1" - 8.5 cm x 12.2 cm x 2.8 cm |
| Warranty | Limited lifetime |
| Operating Environment | Operating : -31º to 150º F (-35º to 65º C) Storage : -67º to 185º F (-55º to 85º C) Humidity : 5% to 95% relative humidity non-condensing |
| Typical Read Range (inches) - ID-1 Credentials (Cards) – SIO Data Model | iCLASS Seos: 1.6" (4 cm) iCLASS: 4.7" (12 cm) MIFARE Classic: 4.3" (11 cm) MIFARE DESFire EV1: 1.6" (4 cm) |
| Typical Read Range (inches) - Tags/Fobs – SIO data Model | iCLASS: 2.8" (7 cm) MIFARE Classic: 1.6" (4 cm) |
| Typical Read Range (inches) - 125 kHz Single Technology ID-1 Cards | HID Prox: 2.8" (7 cm) Indala Prox: 2.0" (5 cm) EM4102 Prox: 3.1" (8 cm) |
| Typical Read Range (inches) - 125 KHz Single Technology Tags/Fobs | HID Prox: 1.6" (4 cm) Indala Prox: 1.2" (3 cm) EM4102 Prox: 2.4" (6 cm) |
| Product Weight (Pigtail) | 9.1oz (258g) |
| Product Weight (Terminal Strip) | 8.0oz (228g) |
| Operating Voltage Range | 5-16 VDC, Linear supply recommended |
| Current Draw - Standard Power Mode*** (mA) | 95 |
| Current Draw - Intelligent Power Management (IPM) Mode (mA) | 70 |
| Peak Current Draw - Standard Power or IPM Mode (mA) | 200 |
| NSC Power Consumption - Standard Power Mode (W @ 16VDC) | 1.5 |
| NSC Power Consumption - w/ IPM (W @ 16VDC) | 1.1 |
| Environmental Rating | Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT) |
| Pannel connection | Pigtail or Terminal Strip |
| Certifications | UL294/cUL (US), FCC Certification (US), IC (Canada), |
| Cryto Processor Hardware Common Criteria Rating | EAL5+ |
| Communications | Optional OSDP with SCP over RS4854 Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG) - Use Shielded cable for best results |
| Transmit frequency | 13,56 MHz & 125 kHz |
