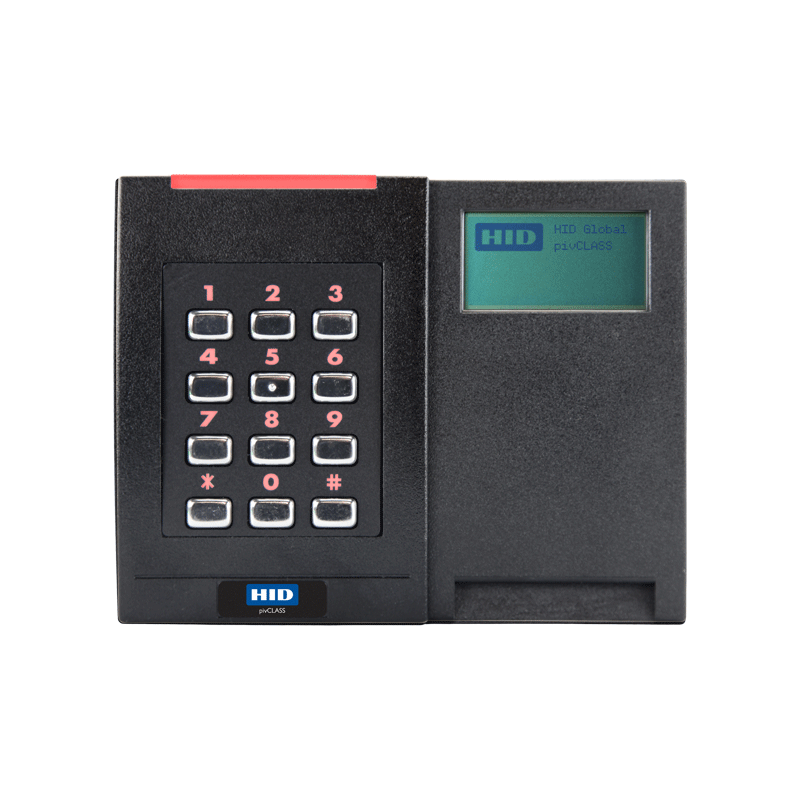

iClass SE - Biometric - Display Reader RKLB40 View larger

HID - iClass SE - Display Reader RPKL40

929P

The iClass SE display Readers are capable of supporting up to three-factor authentification and user interaction. These display readers have advanced security features and optionally support OSDP, to protect communications from reader to controller.

Dimensions 4.8" x 6.1" x 1.2" (12.2 x 15.6 x 3.0 cm)
Weight 13 oz (368g)
Warranty Warrented against defects in materials and workmanship for one year
Operating Environment Operating : -4° to 149°F (-20° to 65° C) ; Humidity : 5% to 95% relative humidity, non-condensing ; Storage : -67° to 185° F (-55° to 85° C )
Display Yes
Environmental Rating UL294 and IP55 indoor / outdoor ratings
Pannel connection Terminal Strip
Certifications UL294/cUL (US), FCC certification (US), IC (Canada), CE (Eu).
Cryto Processor Hardware Common Criteria Rating EAL5+
Communications Wiegand, clock-and-data, open supervised device protcol (OSPD) via RS485 (OSDP BIOREAD & BIOMATCH command and pivCLASS Embedded Authentification - NOT SUPPPORTED)
13.56 MHz Credential Compatibility Secure Identity Object (SIO) on iCLASS Seos, iCLASS SE/SR MIFARE, DESFire EV1 and MIFARE Classic ; MIFARE and DESFire EV1 custom data models ; standard iCLASS access control application ; ISO14443A CSN, ISO14443B CSN, ISO15693 CSN ; FeliCa 4 CSN or CAN
125 KHz Credential Compatibility HID Prox, AWI, EM4102
ICLASS Seos 1.6" (4cm)
ICLASS 4.7" (12cm)
DESFire EV1 SE 1.6" 4 (cm)
MIFARE Classic SE 1.6" (4cm)
HID Prox / AWID 2.8" (7cm)
EM4102 3.1" ( 8cm)
Fingerprint Biometric Sensor N/A
Biometric Authentification Compatibility N/A
