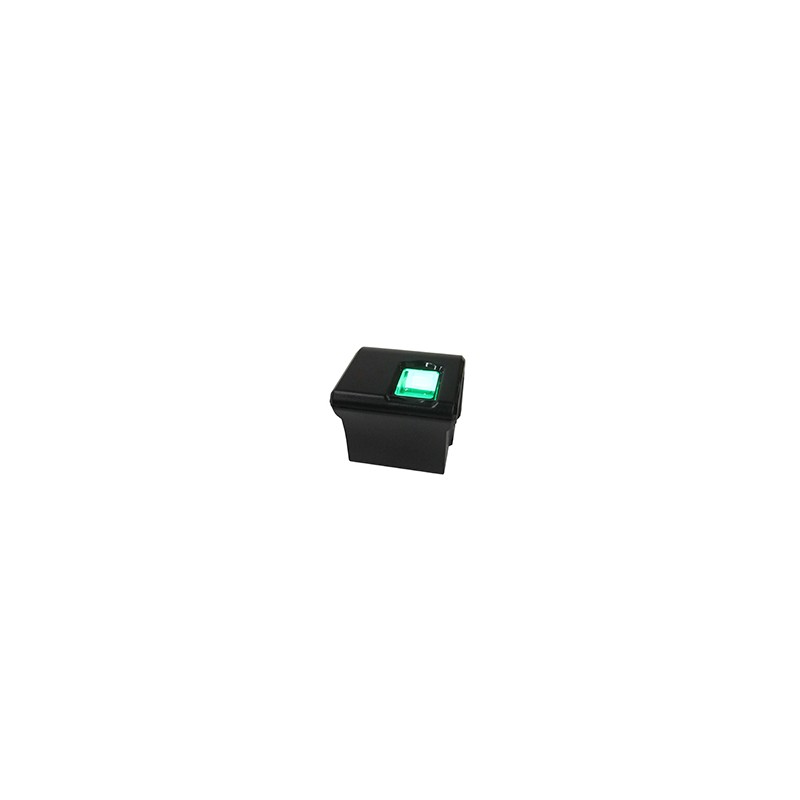

Gemalto - CSD200i - Fingerprint Scanner

Model CSD200i

CSD200i is a single-digit optical fingerprint scanner that is housed in a durable compact casing. The advanced optical system enhances ambient light rejection and liveness/fake fingerprint detection.

Data sheet

Dimensions	2.7 x 2.4 x 2" (69 x 61 x 51mm)
Weight	0.16 Kg
Resolution	500 ppp
Operating Environment	Operating : 0 to 55° C Humidity : 10-90% relative Humidity, non-condensing Storage : -20 to 55°C
Features	Fully featured with auto capture, adjustable brightness, Contract, and gain functions, Ambient light rejection
Documents Processing	10 frames / second image capture
Power	USB 2.0 , data and power
Certifications	FBI PIV -071006 , Mobile ID FAP 20, FCC , CE
