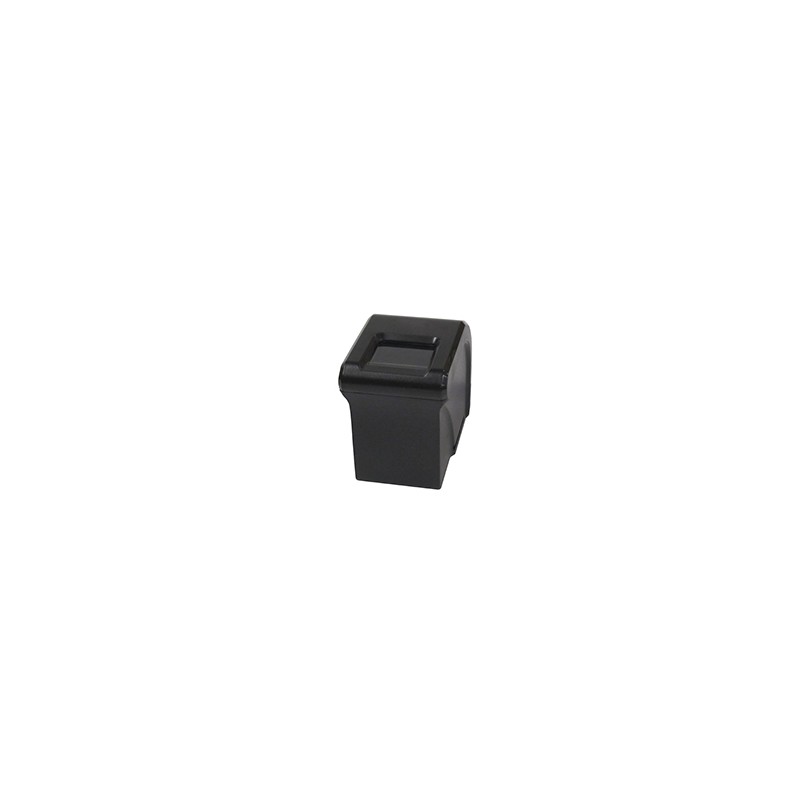

Gemalto - CSD330 - Fingerprint Scanner

Model 75‐0501‐1372‐1

The CSD330 is a single-digit optical finerprint scanner that is housed in a durable and compact casing. The advanced optical system enhances ambient light rejection, permitting the capture of quality fingerprints from stained, marked, or dark fingers

Data sheet

Dimensions	3.78 x 2 x 2.7" (95 x 50 x 69mm )
Weight	0.66 lbs (0.3kg)
Resolution	500 ppi
Operating Environment	Operating L 32 to 131 F ( 0 to 55C ) - Humidity : 10-90% relative humidity, non-condesing - Storage : -4 to 122F (-20 to 50 C)
Features	Forensic-quality flat fingerprint images Ambiant light rejection Large active platen area Fully featured with auto capture, adjustable brightness, contrast, and gain functions
Documents Processing	10 frames/second image capture
Power	USB 2.0 Data and power
Certifications	FBI PIV -071006, Mobile ID FAP 30, FIPS 201 PIV Standard, FCC, CE, UL
