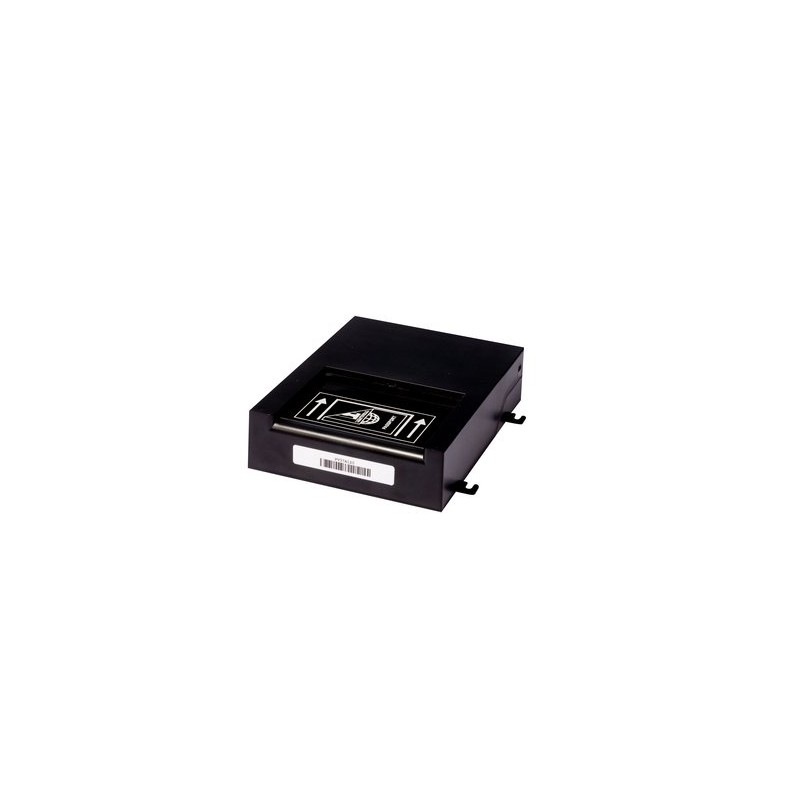

Gemalto KR2400 OEM MRZ Reader

Model XM003881914

The Gemalto KR2400 OEM MRZ Reader inspects and images MRTD containing ICAO-compliant machine readable text in a variety of maket segments

Dimensions	22.1 x 17 x 5.3 cm
Weight	1kg
Resolution	Sensor : 3.1 Megapixels, CMOS, RGB 24 bit color system; Standard 400 DPI
Connectivity	USB 2.0
Operating Environment	Humidity: 20 to 95% (R.H. non-condensing) -Temperature: 0º to 50º C operating; -20º to 50º C storage
Features	OCR Data capture; Complete OCR data and captured images via SDK; images can be accessed as BMP, PNG or JPEG; Auto-triggering of document capture -presence of document is automatically detected
Display	Imaging in 24-bit color and near-infrared
Illumination	The reader illuminates the documents in multiple wavelengths : Near IR B900, 880nm +/-5% ; White visible, 430-700nm
Reading Capability	ICAO compliant documents in near infrared per ICAO 9303 specification parts 1-4 ; effective read zone 125mm x 23.2mm per ICAO 9303 pars 1-4
