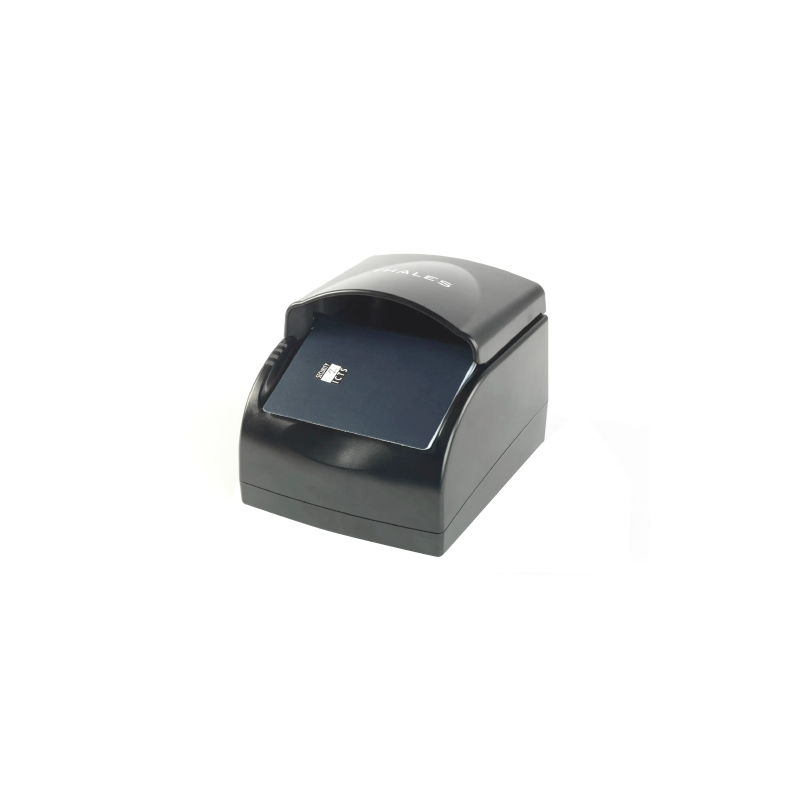

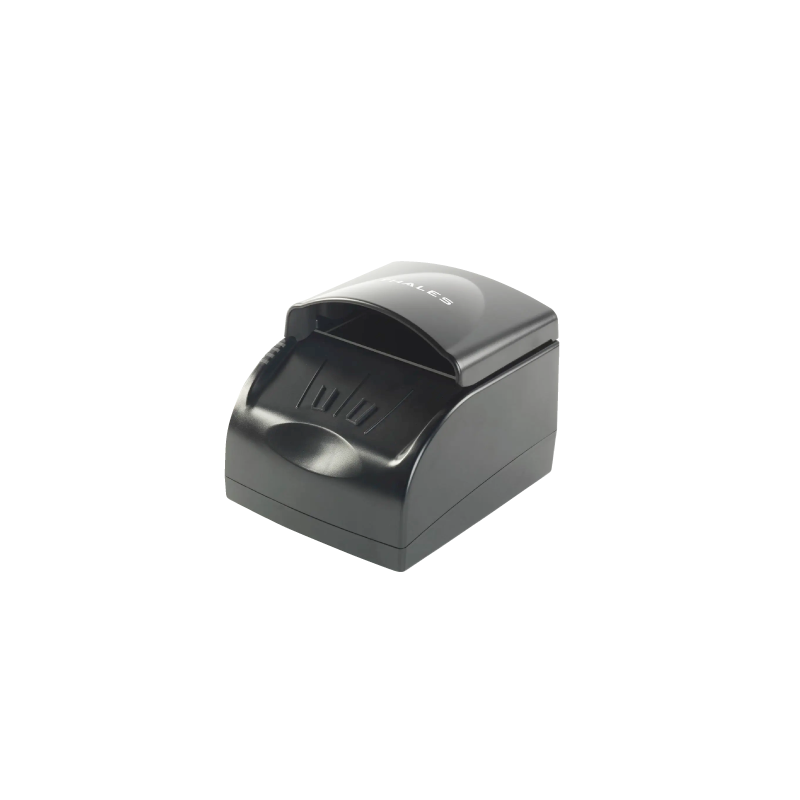

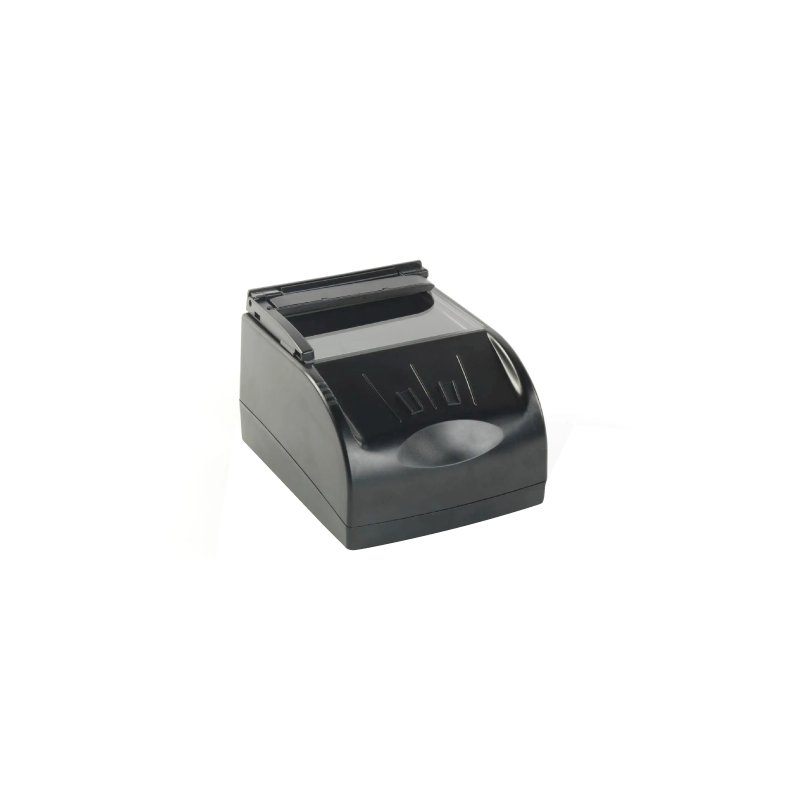

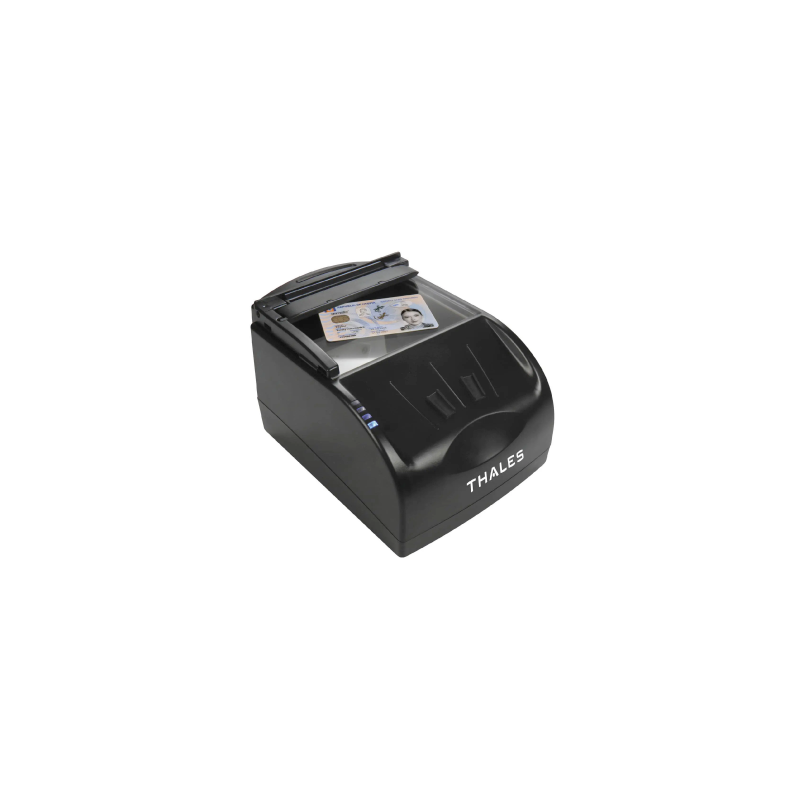

Gemalto AT9000 MK2

The AT9000 is an accurate, easy to use, ID document reader which Reads and authenticates multiple document types quickly, easily and accurately. Support for ICAO-compliant and non-compliant travel documents

More details

Dimensions Length: 19.0 cm (7.5”) - Width: 16.2 cm (6.4”) - Height: 15.7 cm (6.2”) (with light shield)
Weight 1 kg or 2.2 lbs
Warranty 1 Year
Resolution 400 DPI high resolution imaging
Connectivity USB 2.0 high speed compatible
System Integration ISO 14443 Type A and Type B ICs - Active and Passive authentication of ePassports. - Full SDK including DLLs, OCXs and demonstration programs. Support for Visual C++®,Visual Basic®, C++ Builder®
Regulatory FCC Part 15 Class A · UL, UL-C · CE, CB · WEEE/RoHS1
Operating Environment Humidity: 20 to 95% (R.H. non-condensing) - Temperature: -10º to 50º C operating; -20º to 50º C storage
Features OCR data capture· Complete access to OCR data and images captured via Software Development Kit (SDK)· Enables images to be accessed as BMP, PNG or JPEG format· Auto-triggering of document capture – presence of document is automatically detected
Documents Processing ICAO compliant documents in near infrared (IR) per ICAO 9303 specification Parts 1-4 - 1D barcodes (2 of 5 interleaved, Code 128, and Code 39) - 2D barcodes (PDF 417, QR, DataMatrix™ and Aztec formats) from paper documents and some mobile devices

Document Thales - AT9000

Download (884.27k)
