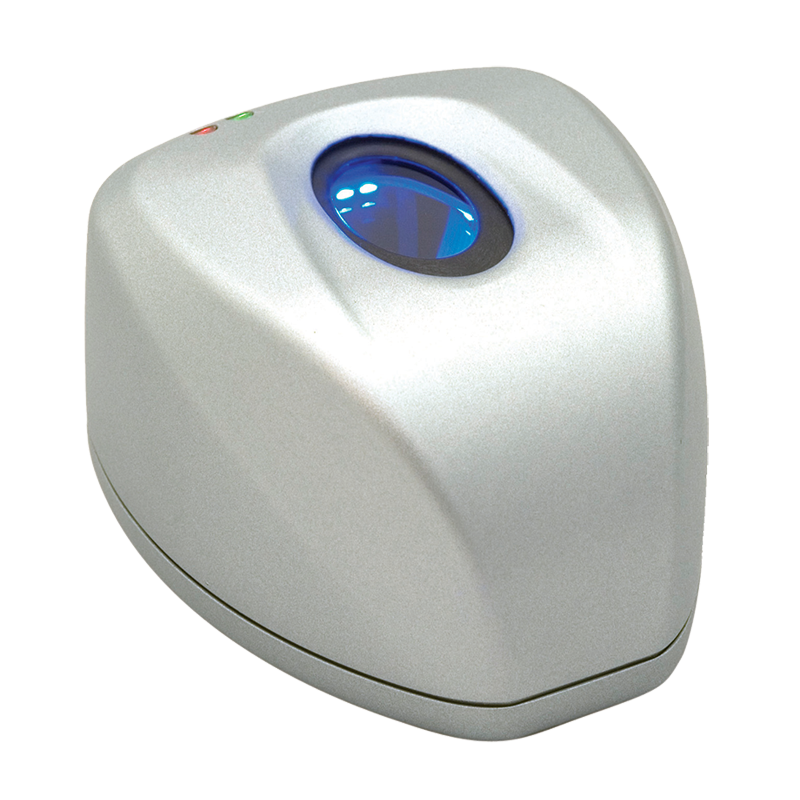

HID - Lumidigm V302-40 - Fingerprint sensor

Model V302-40

Lumidigm V-series sensors deliver an unmatched ability to acquire excellent biometric interoperability and best-in-class liveness detection in a robust device for a low total cost of ownership in a wide variety of fingerprint authentification applications.

Data sheet

Dimensions	3.25" x 4.00" x 2.35" (83mm x 102mm x 60mm)
Operating Environment	-10 to 60 C
Humidity	0-100% RH condensation
ESD Immunity ( operating)	IEC 61000-4-2 Level 4+/-15kV Air
Certifications	CE, FCC part 15 Class B, EN 60950, IEC 62471, RoHS, DEA EPCS, support for thin clients
Communication interfaces	USB 1.1 ou 2.0 (480 Mbps)
Fingerprint Imaging System Technology	Patented Lumidigm optical Multispectral imaging
Fingerprint Imaging System Image Resolution	500 dpi
Fingerprint Imaging System Platen Area	0.7" x 1.1" (18mm x 28mm ) ellipse
BIometric Functions, Latent and Liveness detection	Yes ( field-updatable algorithm )
Ingress Protection	IP65 dust and water protection
Image Output	ANSI 381, ISO 19794-4, WSQ compression (FBI certified)
Template output	1:1: ANSI 378, ISO19794-2 1:N: ANSI 378+
Verify (1:1) Template match score	ANSI 378 or ISO 19794-2
Identify (1:N) score	Supported on USB host with SDK 6+
Verify (1:1) template storage	N/A
Identify (1:N) template storage	N/A
Finger touch to image capture	200 ms (typical)
Finger touch to image out	800 ms (typical)
Finger touch to 1:1 score/template	1.5 sec (typical)
Finger touch to 1:N score	N/A
Liveness Detection (when enabled)	500ms V30x-40 and V30x-30, 100 ms on prior versions (typical)
Encryption	N/A
Interoperability	ANSI 378, ISO 19794-2:2011, ANSI 381, ISO 19794-4:2011, MINEX III, NFIQ
