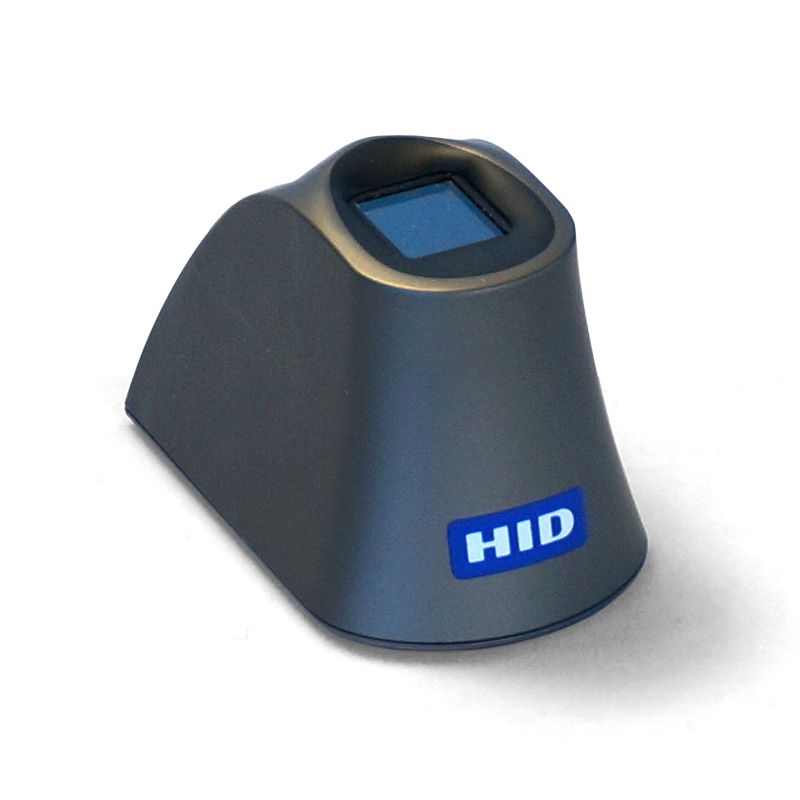

HID - Lumidigm - M311 - Fingerprint Sensor

Model M311

The Lumidigm M-Series Fingerprint Sensors extend patented multispectral imaging technology to the value-conscious enterprise, providing the required durability and performance in a sleek and compact USB desktop housing. The M-Series captures fingerprint data for all users, detects fraudulent verification attemps and provides accurate fingerprint matching

Data sheet

Dimensions	1.9" x 3.1" x 2.0" (47mm x 78mm x 52mm)
Operating Environment	Operating : -10° to 60° C
Humidity	Operating : 0-100% RH condensing
ESD Immunity ( operating)	IEC 61000-4-2 Level 4 +/- 15 Kv air discharge
Certifications	CE, FCC Part 15 Class B, EN 60950, IEC 62471, RoHS, DEA EPCS, WHQL
Communication interfaces	USB 2.0 (480 Mbps)
Fingerprint Imaging System Technology	Patented Lumidigm optical multispectral imaging
Fingerprint Imaging System Image Resolution	500d pi / 8-bit, 256 grayscale
Fingerprint Imaging System Platen Area	0.55" x 0.69" ( 13.9mm x 17.4mm) rectangle, uncoated
Ingress Protection	IP50 dust and water protection
Image Output	ANSI 381, ISO 19794-4, WSQ compression (FBI certified)
Template output	1:1: ANSI 378, ISO 19794-2 1:N Proprietary (ANSI 378+ format) (SDK 6+)
Verify (1:1) match score input	ANSI 378 or ISO 19794-2 template (SDK 6+)
Identify (1:N) search score input	Proprietary template (ANSI 378+ format) (SDK 6+)
Verify (1:1) template storage	Only limited by USB host memory
Identify (1:N) template storage	Up to 5,000 users on USB host (SDK 6+) 1,000 users/group, 10 groups (SDK5)
Identify (1:N) user storage	Up to 5,000 users (up to 10-fingers/user) (SDK6+)
Template Size	1592 bytes (SDK 6+), 512 bytes (SDK 5)
Finger touch to image capture	135 ms (typical)
Finger touch to image out	400 ms (typical)
Finger touch to 1:1 score/template	405 ms (typical)
Finger touch to 1:N score	450 ms (typical, 1000 users)
Liveness Detection (when enabled)	N/A
Encryption	Encrypted video for playback protection
Interoperability	MINEX III, ANSI 378, ISO 19794-2:2011, ANSI 381, ISO 19794-4:2011, NFIQ, WSQ (SDK 6+)
Liveness Detection	No
Latent Dectection	Yes
Ambiant Light Tolerance	18 Klux
