HID - OCR 315e

Model

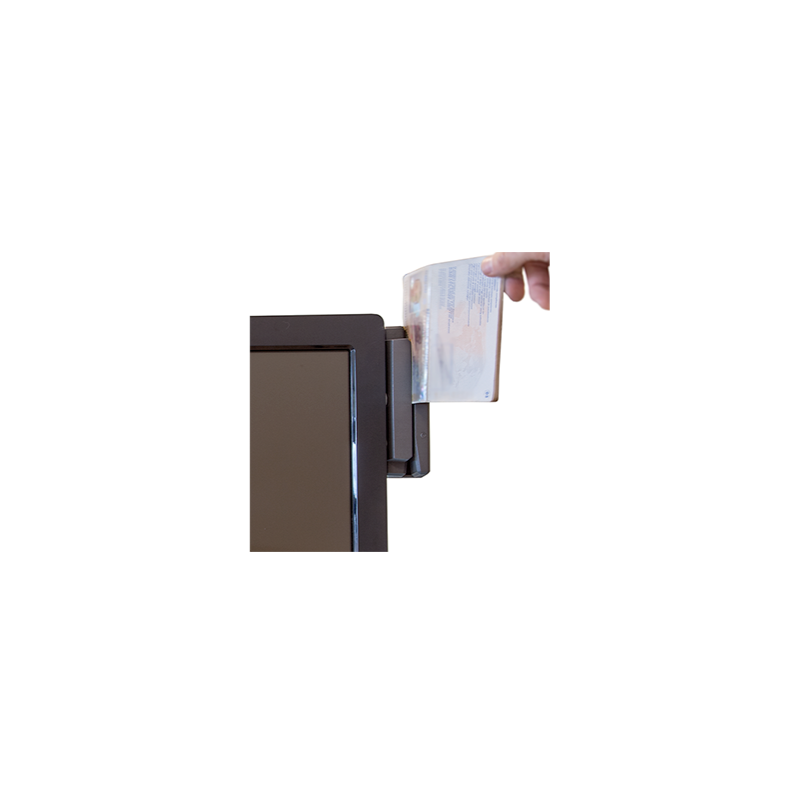

The OCR315e reader reads passports and ID cards. Compact and robust, it can be attached to a wide variety of laptops, mobiles, tablets, keyboards and desktop monitors, or act as a stand-alone reader as part of a verification process.

Data sheet
Download

Dimensions	150L x 44W x 45H mm
Weight	0,2kg
Warranty	1 Year
Connectivity	USB2.0 full-speed interface, USB HID, CDC (virtual serial)
System Integration	Firmware download/upgrade capability.
Configuration	Via USB interface
Regulatory	Safety: EN 60950-1: 2006 EMC: FCC 47CFR Part 15 Class A; EN 55022: 2006 + Amd1: 2007; EN 55024: 1998 + Amd1: 2001 + Amd2: 2003
Operating Environment	Operating temperature: 0°C to 50°C Storage temperature: -20°C to 60°C
Model	Cable Length: 25cm and 1.5m options
Documents Processing	ICAO compliant travel documents in near infrared (IR) per ICAO 9303 specification Parts 1-4 (2- and 3-line MRZ) Near ICAO compliant travel documents (e.g. French ID) ISO-18013 driving licences (1-line MRZ)
