HID - OCR 316e

Model OCR316e

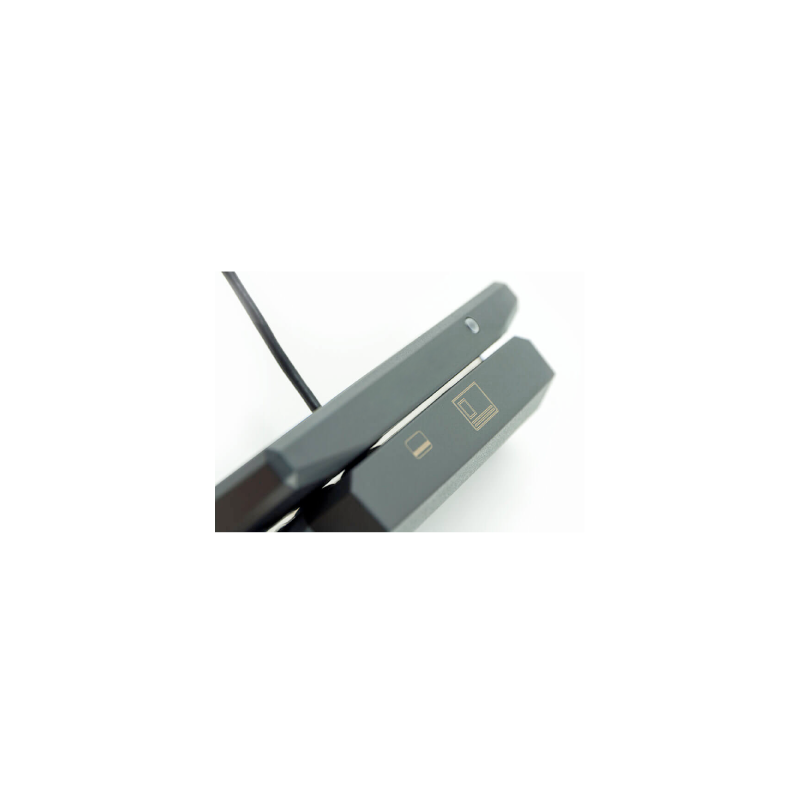

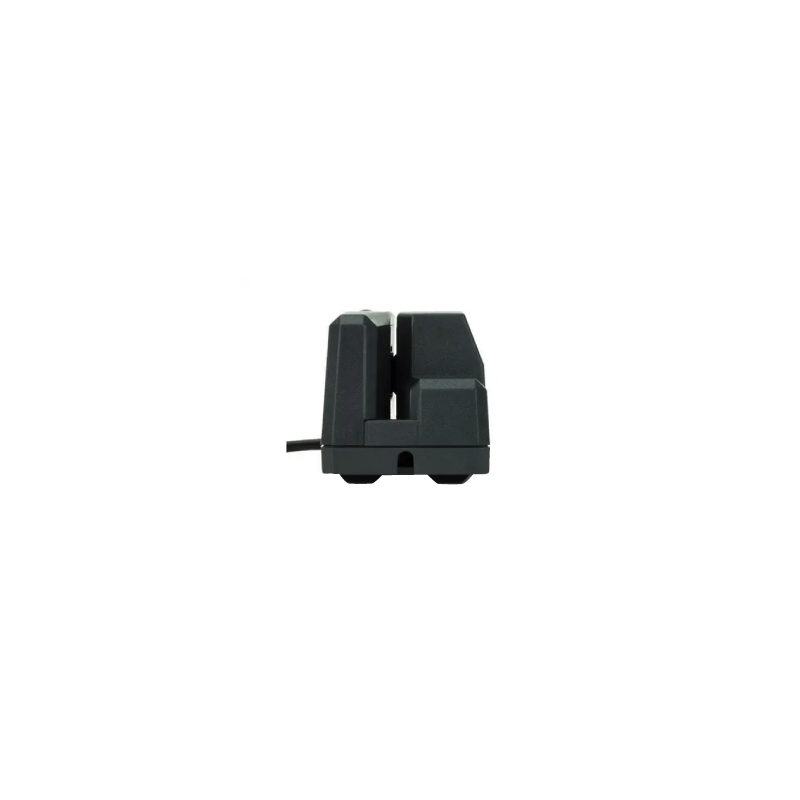

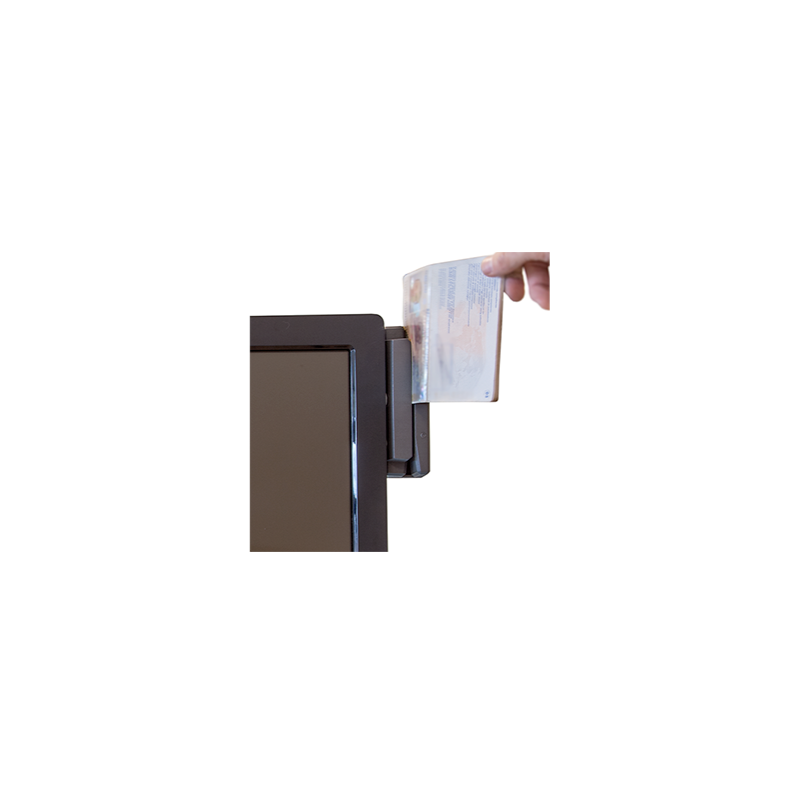

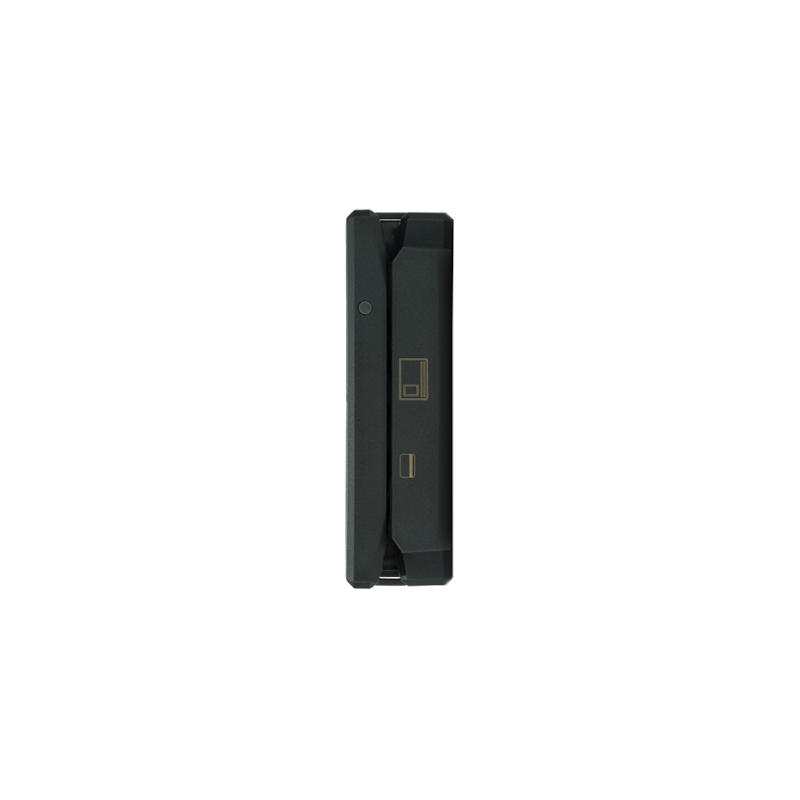

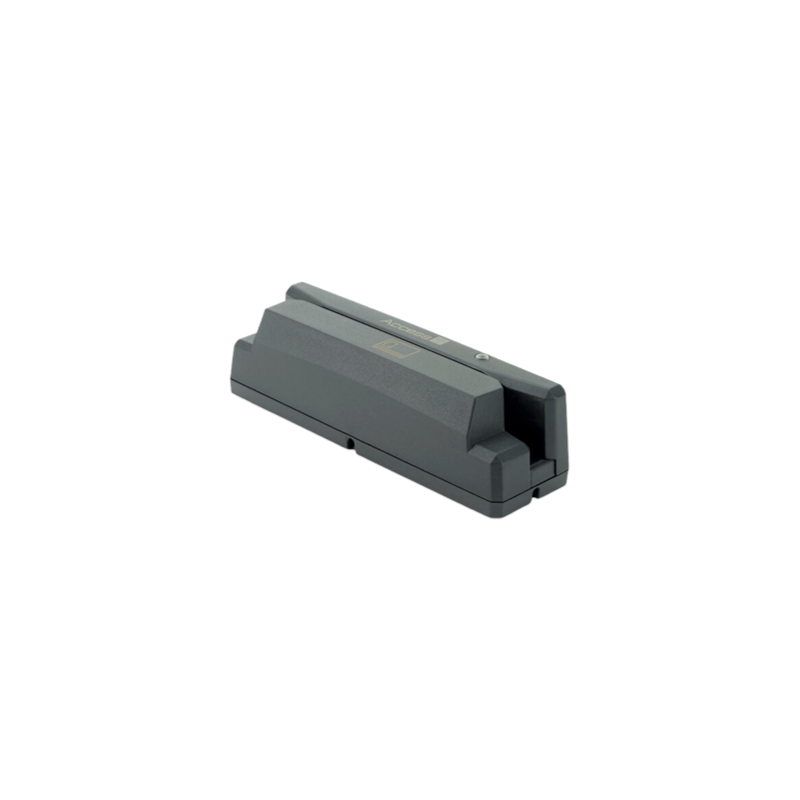

OCR316e is a USB-connected reader capable of accurate bi-directional reading of machine-readable ID documents: passports, visas, residence permits and national ID cards.

The device also incorporates a three-track magnetic stripe reader for reading credit and debit cards, loyalty cards, etc.

Data sheet
Download

Dimensions	150 x 44 mm - Hauteur 45 mm
Weight	200 g (7 oz.)
Connectivity	Interface USB 2.0 à pleine vitesse
Regulatory	Safety : EN 62368-1 / EMC : FCC 47CFR Part 15 Class A, EN 55032, EN55035
Operating Environment	Operating 32°F to 122°F ( 0°C to 50°C) Capacités de lecture
Documents Processing	Conformes aux normes ICAO 9303 et ISO/ IEC 7501-1 (MRZ à 2 et 3 lignes). IEC 7501-1 (MRZ à 2 et 3 lignes). Il peut également lire la norme ISO/IEC 18013 également ISO/IEC 18013-1.
