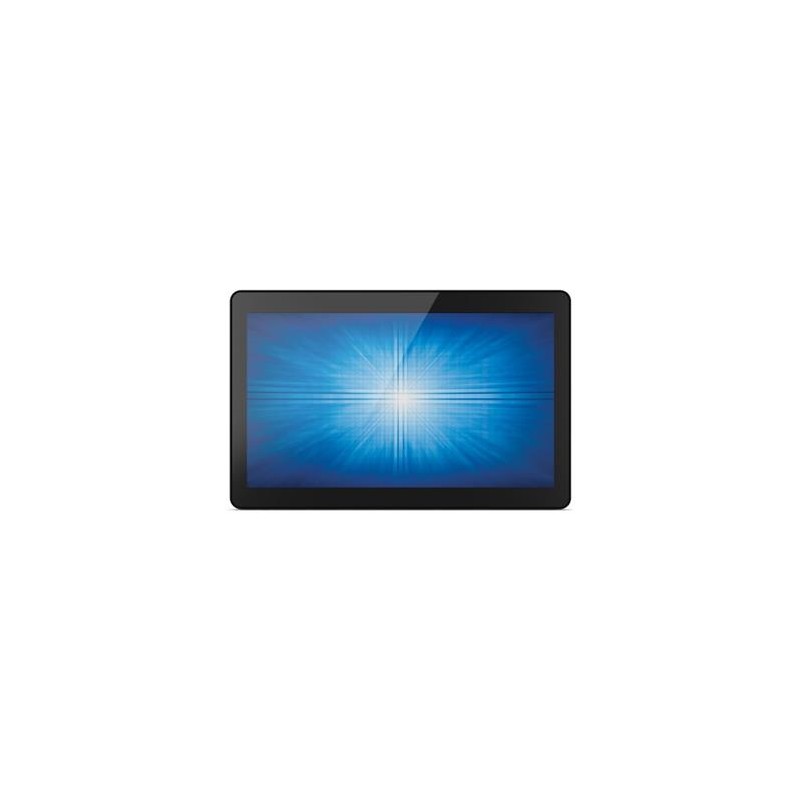

Elo - I-Series - Windows - 21.5 "

Model ESYxxi5

The Elo I-Series for Windows AiO interactive signage delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful Windows-based platform with a sleek, ultra-thin, yet ruggedized form factor down to 1.5 inches thin.

Data sheet
Download

Weight	1.05 lbs - 5.47 kg
Warranty	3 years, extendable to 5 years
Operating Environment	Operating : 0° to 35°C Storage : -20° to 60°C
Humidity	Operating : 20 to 80 %; Storage : 5 to 95%
Certifications	UL/cUL, FCC, TUV, CB CE, VCCI
Processor	Intel i5-6500TE Quad-Core Processor 2.3GHz (up to 3.3 GHz) 6MB Smart Cache
Graphics	Intel HD Graphics 530
Memory (RAM)	4GB DDR4 SODIMM on 1 of 2 slot (Expandable to 16GB maximum)
USB Ports	4 x USB 3.0 3 x Micro USB for Elo peripherals
Ethernet Port	1 x LAN RJ45 (Gigabit)
Wireless Connectivity	Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 4.0
Display	21.5" diagonal, active matrix TFT LED LCD
Viewing Angle	Horizontal: 89°/178° total, Vertical: 89°/178° total
