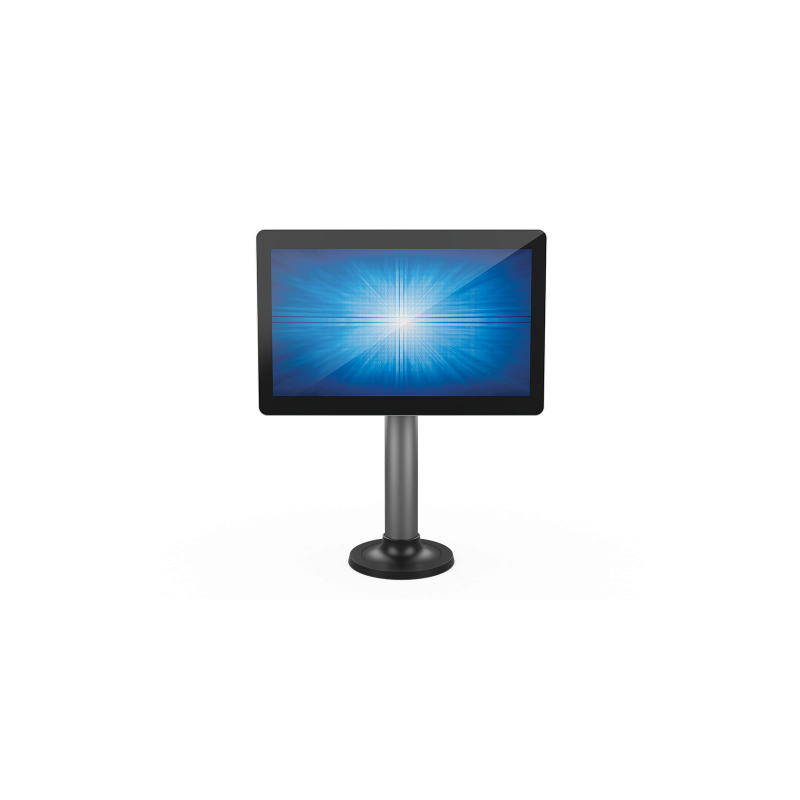

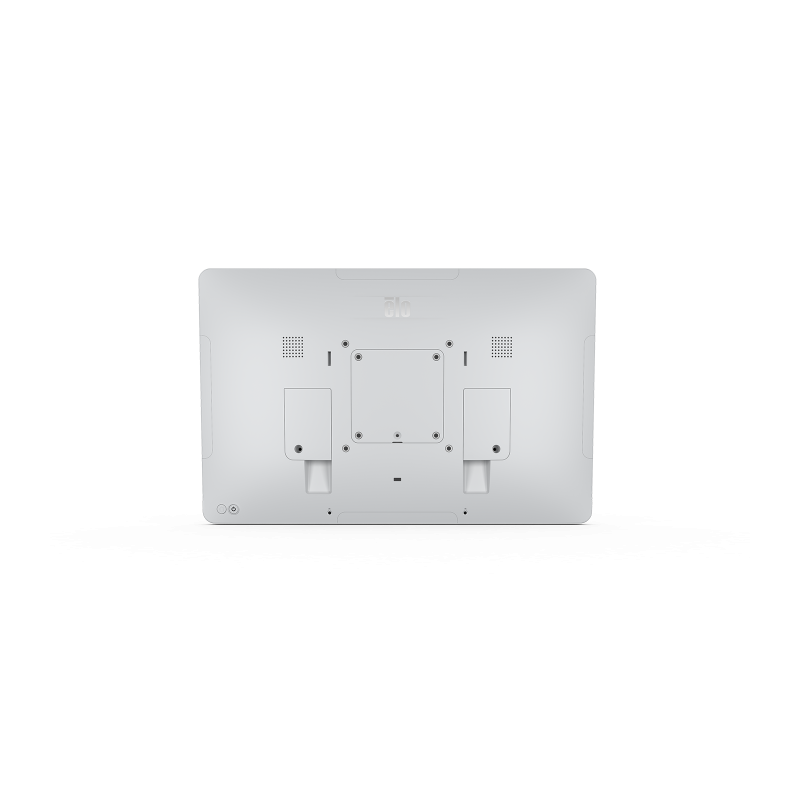

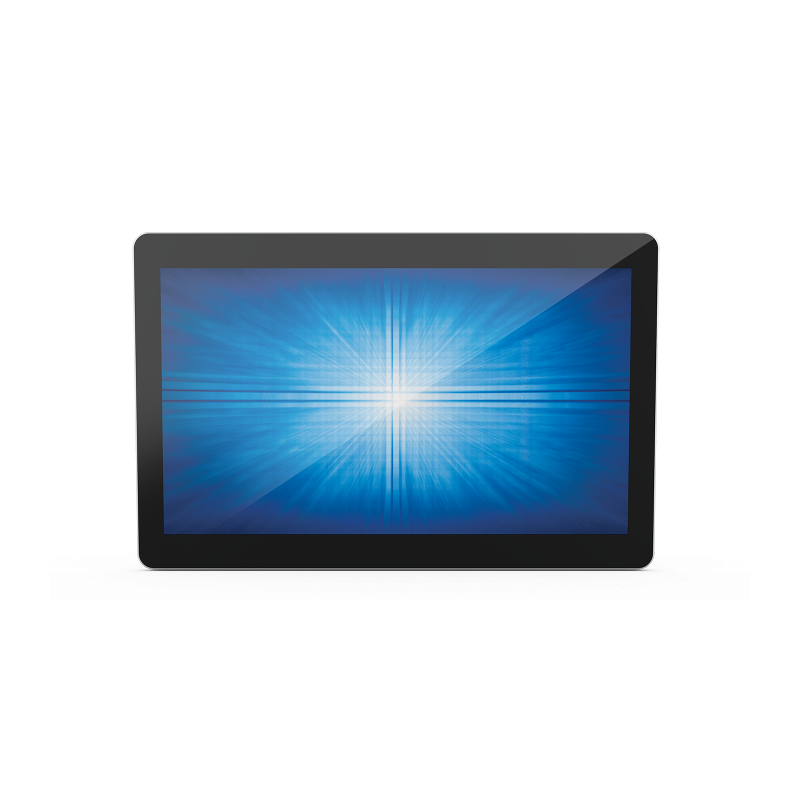

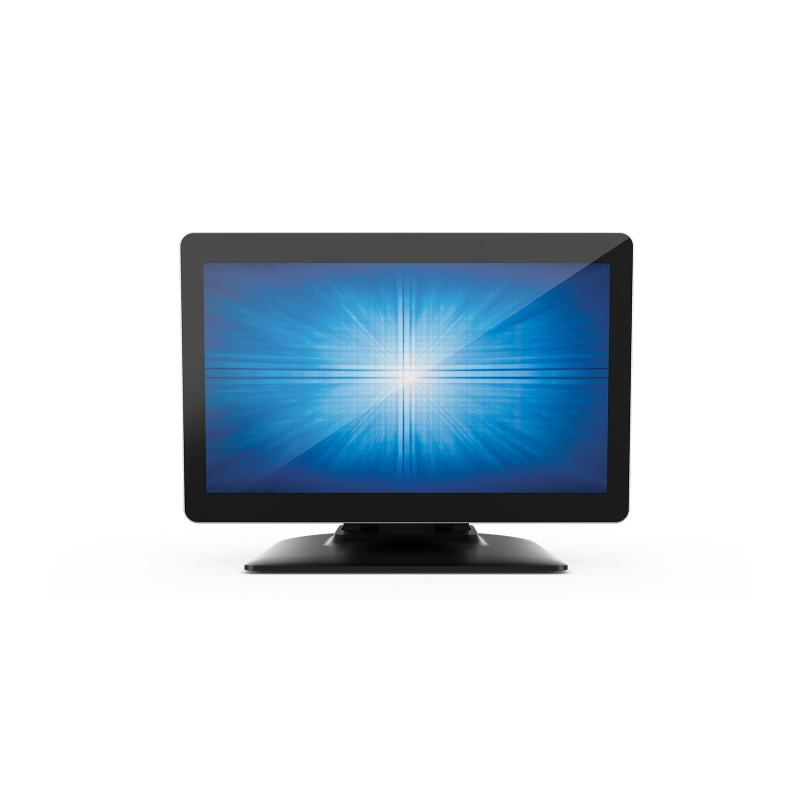

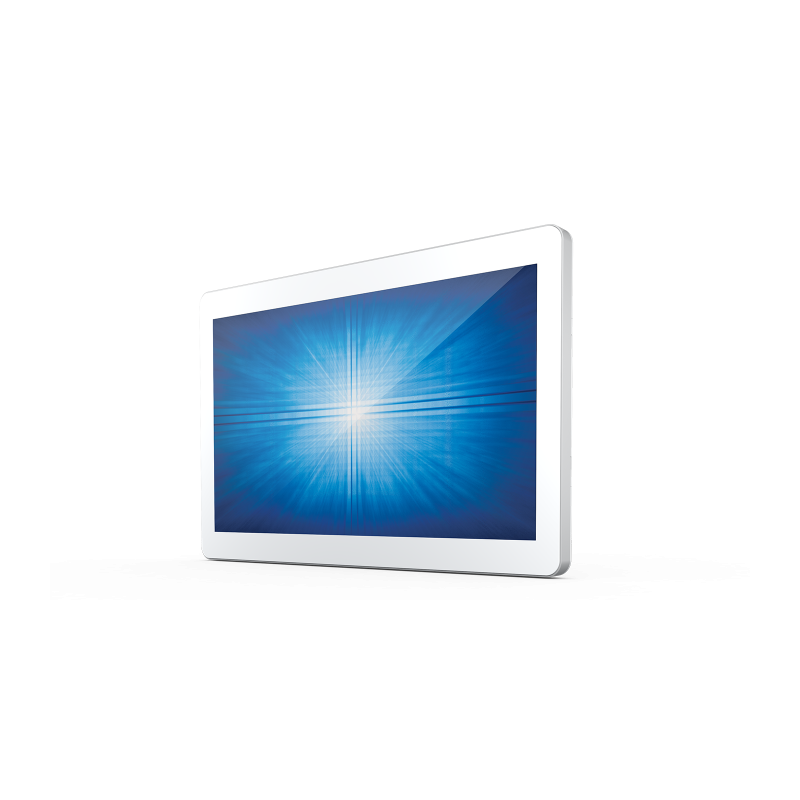

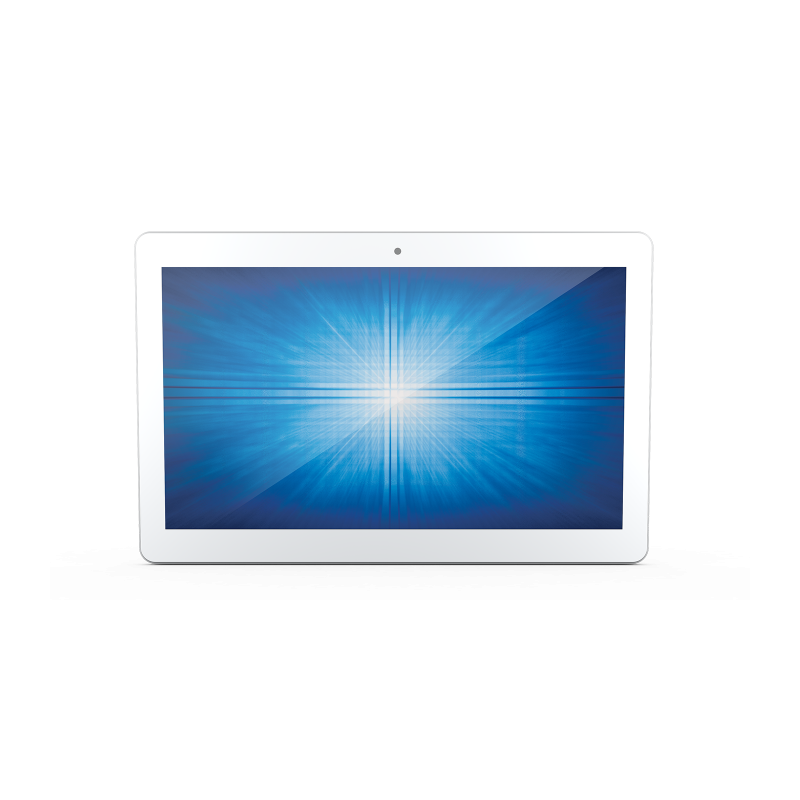

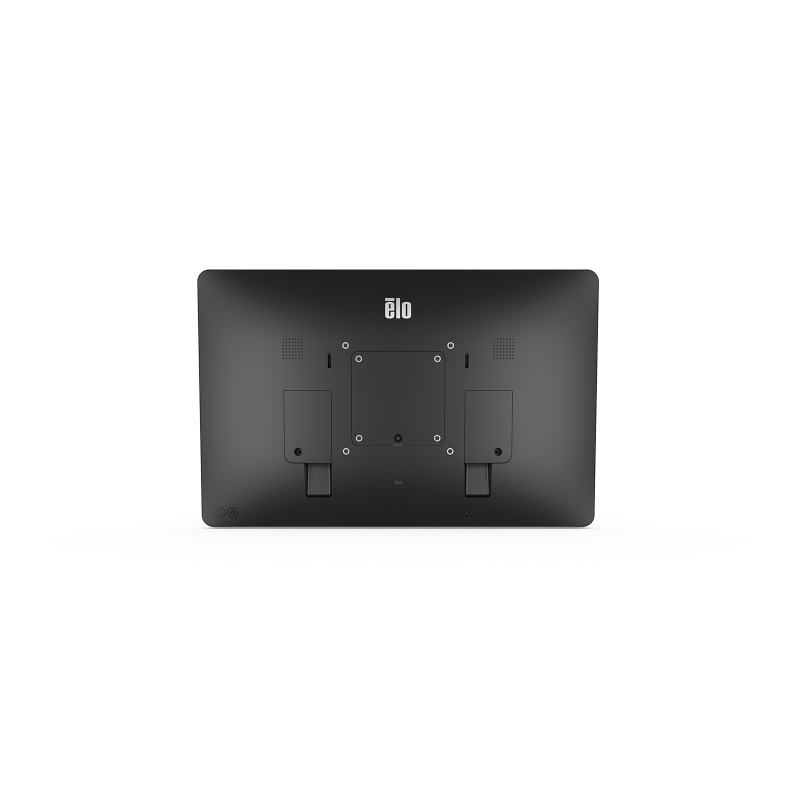

Elo - I-Series 2.0 - Android - 15.6"

The newly upgraded I-Series 2.0 for Android combines commercial-grade reliability with the powerful Qualcomm® Snapdragon™ processor. Delivering 2x the performance of its predecessor, the I-Series brings it all together with an integrated TouchPro® PCAP 10-touch display, Android 7.1 (Nougat) and optional Power-over-Ethernet (POE) – all in a compact responsive all-in-one (AiO) computer

Dimensions 15.23" x 9.77" x 1.11" (386.74mm x 248.17mm x 28.3mm)
Weight 3.5 lbs (1.59 kg)
Warranty 2 years standard. On-site exchange (U.S. only) and extended warranty (U.S. and EMEA) available
Operating Environment Operating: 32°F to 104°F (0°C to 40°C); Storage: -4°F to 122°F (-20°C to 50°C)
Humidity Operating: 20%-80%; Storage: 5%-95%
Display Full HD 1920 x 1080 @ 60Hz (native) active matrix TFT LCD with LED backlight
Certifications UL/cUL, FCC, IC, CE, CB, CCC, SRRC, China RoHS, VCCI, MIC, RCM
Processor Qualcomm® Snapdragon™ APQ8053 2.0GHz octa-core Processor
Memory (RAM) Standard - 3GB DDR3L
Viewing Angle Horizontal: ±85°; Vertical: ±85°
Storage Standard - eMMC 5.1 32GB SSD
I/O Ports Standard - Micro HDMI output, Micro SD slot, Ethernet 1x LAN (Gigabit), GPIO, 1x USB 3.0, 4x microUSB
Wireless 802.11 b/g/n/ac + Bluetooth 4.1
Webcam Auto exposure; Auto Gain Control; Sharpness/Brightness/Contrast control; Max resolution: 1920 x 1080 30fps (standard model only)
Audio Microphone and headphone support is available via an optional the USB adaptor (Vantech NBA-120U).
Touch Technology TouchPro PCAP (Projected Capacitive) - up to 10 touches
Speakers Two 2W stereo internal speakers
Response Time 30 ms
Brightness LCD panel 300 nits; PCAP : 258 nis

Elo - I-series 2.0

Download (285.59k)
