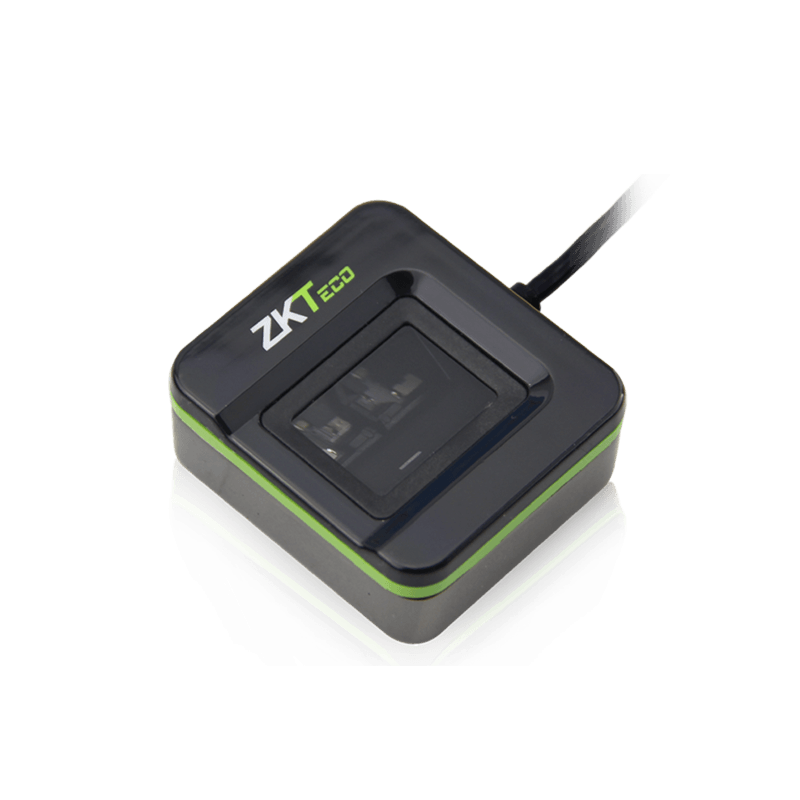

ZKTeco - SLK20R

Model SLK20R

SLK20R is a leading fingerprint scanner which adopts the advanced optical design. It has a superior ability to do live fingerprint detection and capture high-quality fingerprint images by 2 Megapixel camera.

Data sheet

Dimensions	49 x 44 x 20.1mm
Weight	0.12 kg
Resolution	500~1000 dpi
Operating Environment	-20 °C to +50 °C
Humidity	90% RH
Features	• Support live fingerprinter detection function • Large fingerprint capture area and high image performance • Quick recognition of dry, wet and rough fingers • High Speed USB 2.0 • Low Power Idle Mode
General	Collecting Area : 16.5 * 23 mm; Image Size: 300 * 400 pixel (FAP20 )
Power	USB 2.0 / USB1.1
Certifications	FCC, CE, RoHS, PIV
